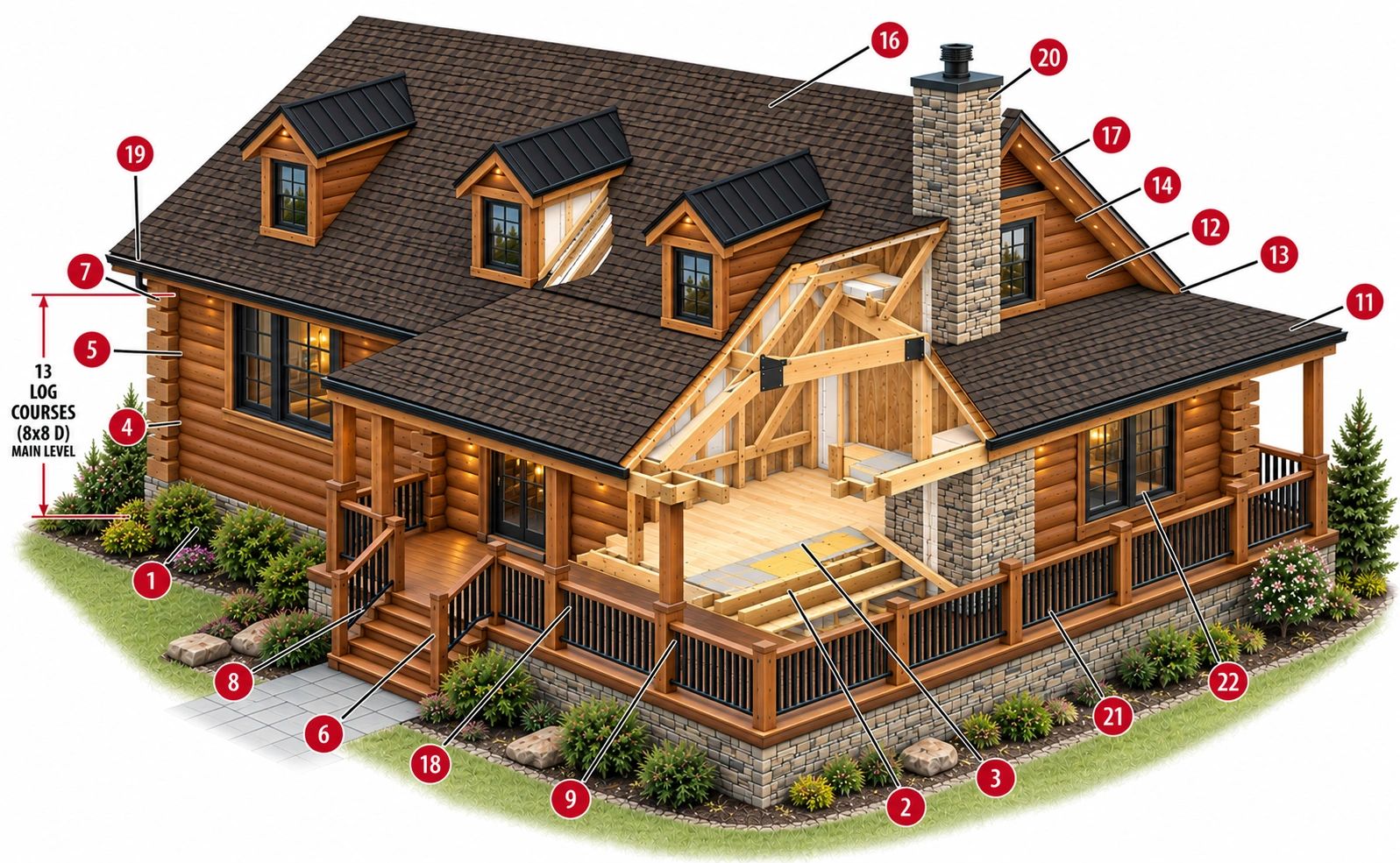

1. Pressure treated sill plate and sill sealer for perimeter foundation
2. 2x8, 2x10,2x12 Conventional first floor framing with solid bridging as per design with support nail lam beam as per design
3. 3/4"x 4'x'8' T&G Dryguard or Thrufloor subfloor (no sand) locking panels with construction adhesive and screws
4. Log skirting and trim boards
5. 8" X 8" Track & Lock Logs, SINGLE OR DOUBLE T&G (Standard Profiles Only) choice of Canadian White Cedar or Canadian White Pine
6. Window and door buck lumber and window extension jambs
7.Alum Clad Exterior- Pine Wood Windows, Insulated Low E double-hung, awning, angle bay, casement, cottage and special fixed glass windows per plan with screens (where applicable)
8. Wood framed Steel insulated exterior doors (6 styles) and or Garden doors as indicated
9. 2x4 and 2x6 Interior partition framing, with shoes and plates, 2x8 interior header materials
10. Second floor framing system with 3/4" T&G Dryguard or ThruFloor locking panels for 1-1/2" and 2 story models, with standard stairs and our rustic rail system
11. Gable end truss or framing as per plan
12. 7/16" x 4 x 8 wallboard sheathing, matching log siding, gable ends, dormers & second story walls
13. Conventionally framed rafter roof system or engineered roof trusses or per design
14. 1/2" roof plywood with H Clips, collar ties or ridge beam as per plan
15. Roof underlayment
16. Limited Lifetime Warranty self sealing roof shingles
17. Barge rafter and gable end overhang (12" standard)
18. Fascia with Pine or Cedar soffit with vent strips (Pine with Pine Logs/Cedar with Cedar Logs)
19. 12"-16" standard eave overhang
20. Roof vent system as required
21. Porch posts with complete rail system, Newels, Handrails, Balusters as required per code & grade
22. Porch carry beams, roofing per plan, porch rafters, V-Joint T&G Grove for Porch Ceilings if indicated.
23. Pressure treated frame & joist hangers with 5/4" x 6" ease edge decking
Additional Features
* Drip Edge and Gutter Apron (not visible)
* Urethane foam for Windows, and doors (not visible)
* All required nails, Olly Log Screws and fasteners
* Double row of Emseal gasket
* Log Builder sealant as needed
* Wood dowels for vertical joints and corners
* Step flashing for dormers (not visible)
* 4 sets of Final Blueprints
**ONTARIO, CANADA - BCIN & ENGINEER STAMPED PERMIT READY FINAL BLUEPRINTS
High altitude, Seismic, Hurricane, Nordic, Tropical and other extreme weather building specifications are available as an upgrade.

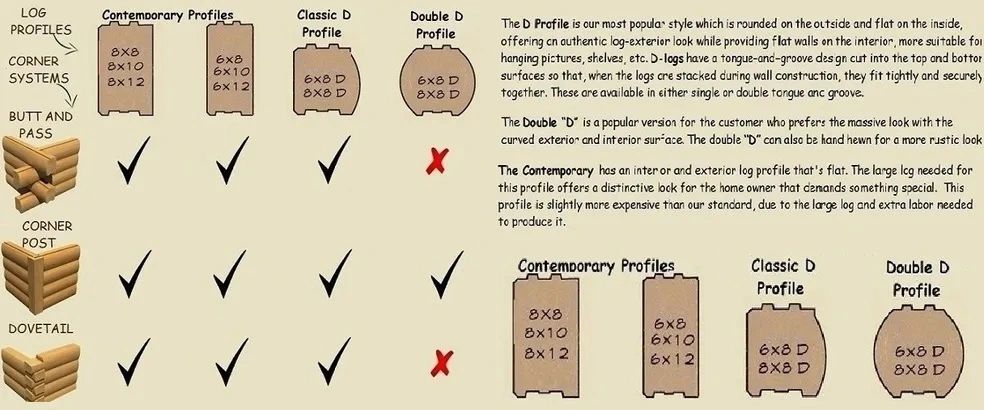

LOG PROFILES AND CORNERS
